Colnago X35 External Battery SP1+Holder+Wire

Colnago X35 External Battery SP1+Holder+Wire.

The new optional Battery or “Range Extender” from ebikemotion is one of the most interesting accessories of X35 propulsion system. Its 208w complement the 252w of the main inner battery reaching 450w as total capacity. This numbers can move the system during 4.5 hours with a medium consumption of 100wh that is currently the media consumption of the system.

There is no challenge that we cannot afford with this upgrade making possible close to 2 hours or hard uphill using the maximum power assist of the system, something completely out of any limitation.

Once the Range extender is connected to the Hybrid eBike, it can work in three different intelligent modes depending of the user requirements. This is a short description of all of them:

1.- Power bank for the main battery when the eBike is stopped or over 25Km/h: When Range extender is connected and switched on it starts to works as charger for the main on if there is no consumption of the main. Perfect solution for garages without plugs or charging while riding.

2.- Charging while riding: When the consumption of the motor will be lower than 2A (downhill, no assistance or over 25km/h, all the energy doesn’t consumed by the motor will charge the main battery. (by this way we compensate the extra consumption during uphill)

3.- Parallel supply: The motor unit consumption is over 2A, the Range extender will supply the first 2A and the additional energy will be supplied by the main one.

Charging while riding?

Of course! Thanks to the intelligent charging system we can find that while the user is downhill or when the user is riding over 25 km/h the eBike showing us the
iWoc ONE in bike charging (fading mode of RGB light).

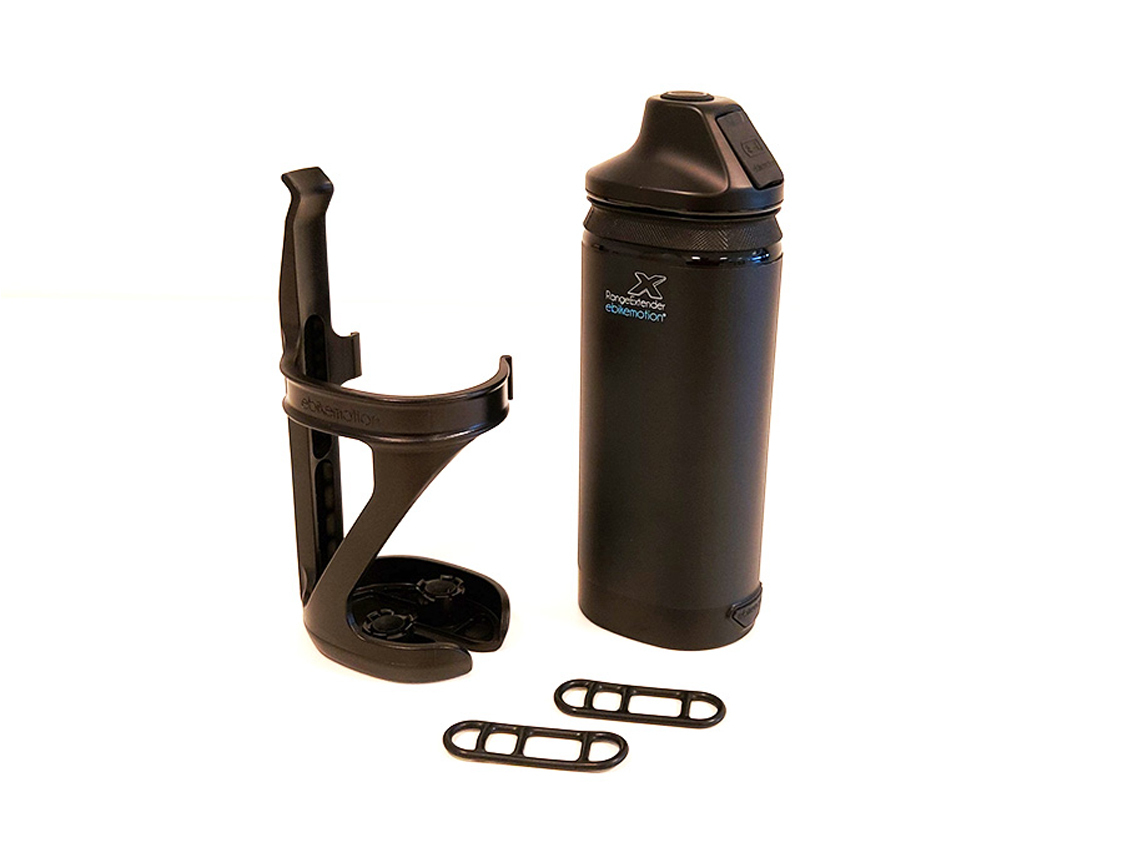

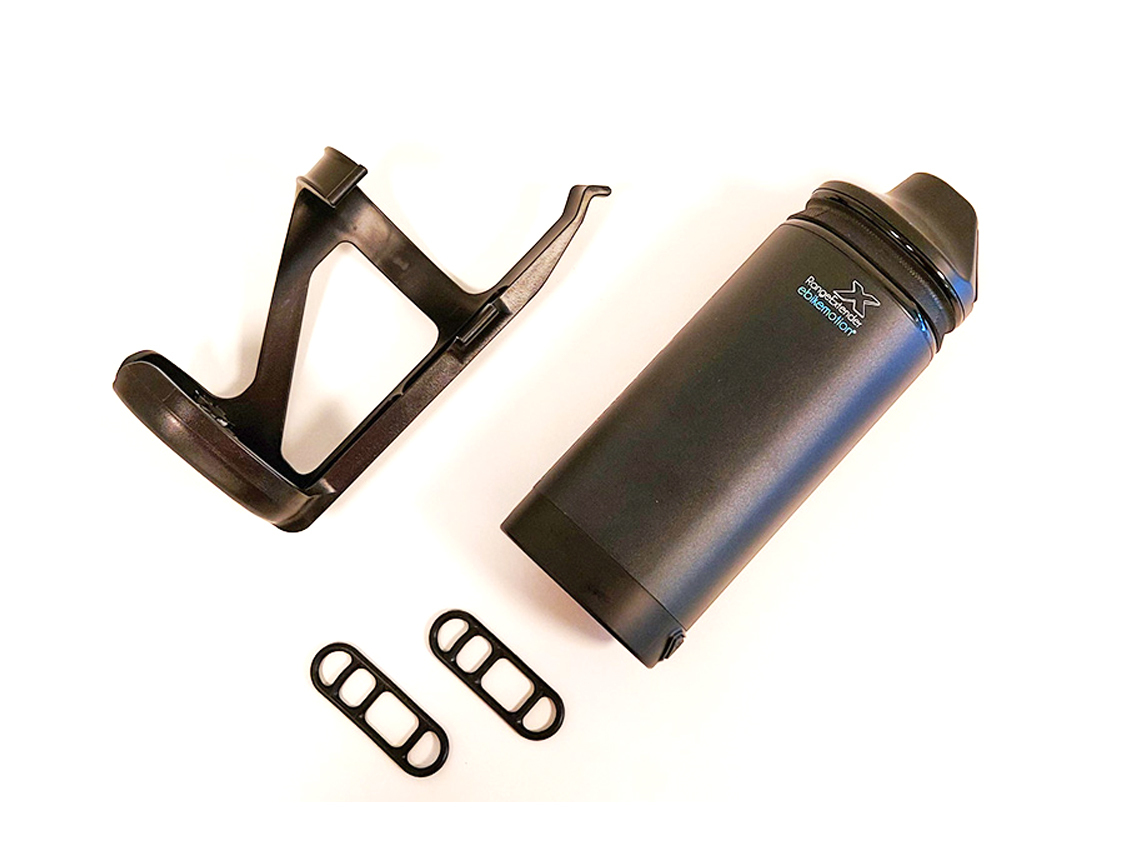

They have included 4 different locking systems for the Range extender.

Specifications
